THOR 2 1KM+

YD-LS2000-DF

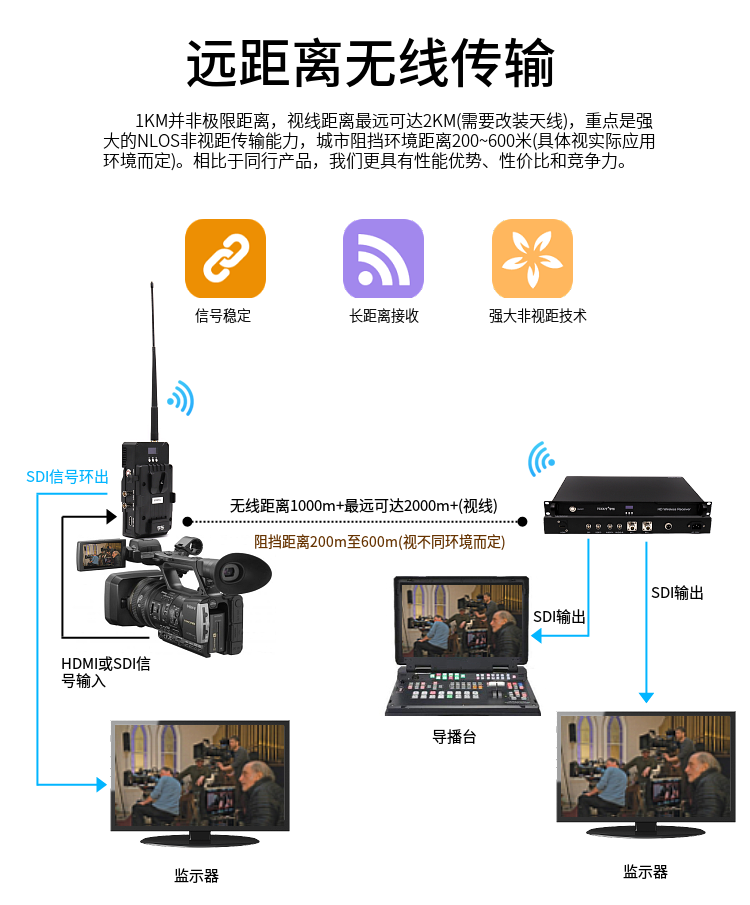

THOR 2 wireless image transmission double V button switch radio and television broadcast wireless video transmission system, non-line-of-sight (complex environment, can go through the wall, many people, cars, trees and obstacles), Hd wireless image real-time transmission system is mainly used in radio and television stations, film and television shooting, live education, large-scale concerts, film and television production, sports broadcasting, social news, air live, studio, public security, fire, maritime, traffic police, civil air defense emergency, urban management law enforcement, three defense emergency and other aspects. Appearance and function can be customized, ground visual distance: 1 ~ 2 km; Non-visual distance: 200 ~ 600 meters. Depending on the actual application environment, you can choose HDMI input or SDI input, SDI output, etc.

立即咨詢

產品概述
產品特點
產品參數
應用場景
相關產品
相關案例

01 產品概述

雷神2號無線圖傳雙V扣扳式廣電直播無線視頻傳輸系統，非視距(環境復雜、可穿墻、人多、車多、樹多及障礙物多的地方)，高清無線圖像實時傳輸系統主應用于廣播電視臺、影視拍攝、教育直播、大型演唱會、電影電視制作、體育轉播、社會新聞、空中實況、演播室、公安、消防、海事、交警、人防應急、城管執法、三防應急等方面。可訂制外觀及功能，地面視距：1～2公里；非視距：200～600米。具體視實際應用環境而定，可選擇HDMI輸入或SDI輸入， SDI輸出等。

02 產品特點

THOR 2 remote wireless image real-time transmission system is a new generation of broadcasting standard image real-time transmission system produced by the company. Using the current leading non-line-of-sight modulation technology, relatively narrow band air frequency occupation (6/8MHz) and strong anti-multipath interference ability, to overcome the problems caused by multi-path reflection and occlusion of image transmission under analog technology and conventional modulation technology, to achieve high-speed motion shooting and real-time transmission of high-quality images under non-line-of-sight (non-visibility). Especially suitable for use in complex environments; The Angle design of radio and television industry, small size, can be used for media companies to close non-line-of-sight live broadcasting with occlusiveness or open visual live broadcasting. Using the high-efficiency compression H.265 new digital coding standard, the definition reaches the full HD HD1080P picture quality, the resolution reaches (1920*1080); Support digital interface HDMI SDI input, SDI signal output, with fine picture quality, excellent color, rich color control ability and other high-definition picture quality characteristics.
1. Line of sight distance 1 ~ 2KM non-line of sight distance 200 ~ 600 meters (depending on the actual application environment)

2. Support 1080P/60Hz, resolution up to 1920*1080 compatible with 1080I, 720P, 480P.

3. Supports HDMI, HD-SDI, 3G-SDI and other high-definition ports.

4. Plug and play without complicated Settings.

5. Support frequency switch, support one more receive.

6. Support Type B port: external power port, support DC 12-16V.

7. Support plate: front and back plate, DC power through.

8. Compatible with EDID structure 1.1

9. Receive a sucker antenna or feeder

10. The device has a liquid crystal display for displaying parameters and adjusting parameters

03 產品參數

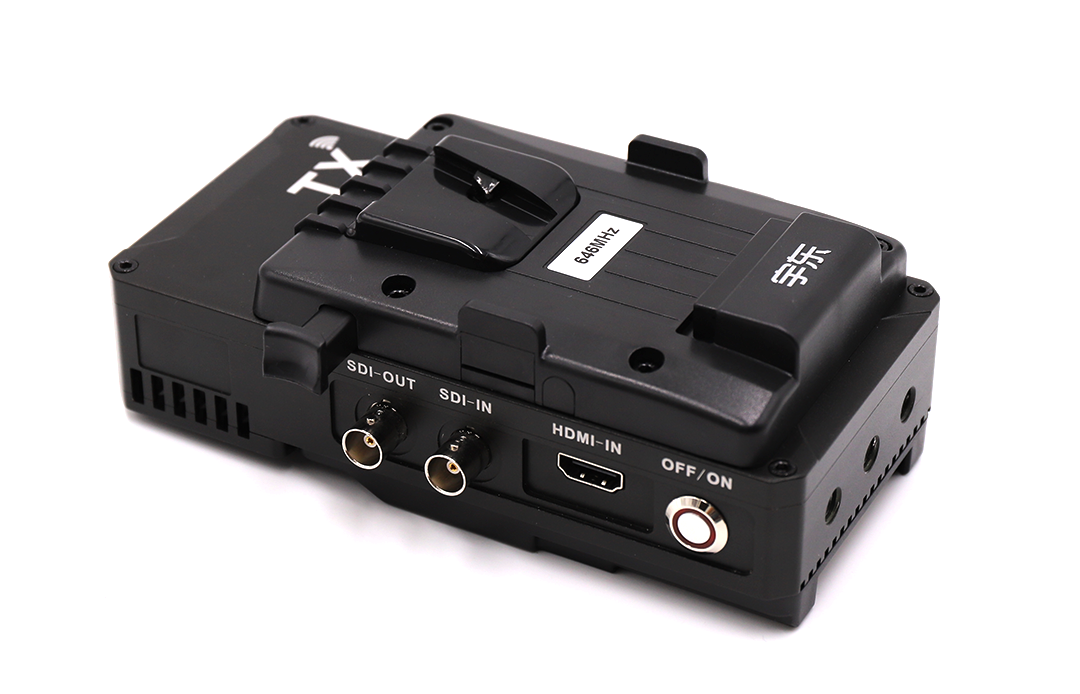

發射機

工作頻率	300MHz～4400MHz頻率訂制
射頻功率	1～5W可調
FEC	1/2，2/3，3/4，5/6，7/8
保護間隔	1/32，1/16，1/8，1/4
信道帶寬	2-8MHz
碼流	2Mbps～12Mbps
時延	≤60ms
傳輸距離	視線距離1～2KM
音視頻接口	HDMI SDIx1輸入 SDI環出
圖像清晰度	HD1080P，向下兼容1080I、720P、480P及標清
圖像幀率	24、50、60幀/秒，兼容其它幀率
電源	DC12-16V，廣電專用電池 SONY V型扣
尺寸規格	165×82×52mm (L×W×H)
重量	660g，不含電池

接收機

工作頻率	300MHz～880MHz 頻率訂制
信道帶寬	2/3/4/5/6/7/8MHz
靈敏度	2MHz：-103dBm；2.5MHz：-102dBm；4MHz：-100dBm；8MHz：-97dBm
接收技術	空間分集技術
接收極化	垂直極化，雙天線接收
音視頻接口	SDI*1輸出
圖像清晰度	HD1080P
圖像幀率	24、50、60幀/秒，兼容其它幀率
電源	AC220V/DC12V
尺寸規格	48028045mm， 1U機箱
重量	2.5Kg
